Characteristics and Application Of Truck - Mounted Well Drilling Rig

Truck mounted water well drilling rig  is a self-propelled drilling solution designed for water wells, irrigation wells, industrial water supply wells, geothermal projects and other deep-hole drilling applications. By integrating the drilling system, mast, rotary head, winches, hydraulic outriggers and supporting components onto a truck chassis, the rig can move efficiently between project sites and begin drilling after proper site positioning and leveling.

Compared with crawler drilling rigs, truck mounted well drilling rigs are particularly suitable for contractors working across multiple locations with access ible roads. They can reduce transfer time between projects and provide a practical solution for drilling teams that need both drilling capacity and convenient road transportation.

JK Drilling supplies truck mounted water well drilling rigs for projects with different borehole diameters, drilling depths and geological conditions. Explore our complete Truck Mounted Versatile Well Drilling Rig range to compare available models.

What Is a Truck Mounted Water Well Drilling Rig?

A truck mounted water well drilling rig combines a drilling machine with a vehicle chassis. The drilling system is installed on the truck platform and typically includes:

• Truck chassis and transmission system

• Drill mast or tower

• Rotary head or turntable drilling system

• Main winch and auxiliary winch

• Hydraulic outriggers for leveling and stability

• Mud pump system

• Drill rods and drilling tools

• Control system

• Optional air compressor, generator and auxiliary equipment

Once the rig arrives at the job site, the hydraulic outriggers are deployed to stabilize and level the machine. The mast is raised, drill rods are connected, and the rig begins drilling according to the selected drilling method and geological conditions.

Truck mounted rigs are commonly used where the drilling contractor needs to complete several water well or geothermal projects in different towns, rural areas, industrial sites or agricultural regions.

Why Choose a Truck Mounted Rig?

Truck mounted water well drilling rigs are selected mainly for mobility, field efficiency and integrated operation.

Faster Transfer Between Job Sites

The rig is installed on a road-going truck chassis, allowing drilling contractors to move directly between project locations without requiring a separate trailer for short and medium-distance transfers. This is useful for water well contractors serving multiple villages, farms, industrial facilities or municipal projects.

Integrated Drilling System

The truck platform can integrate the mast, winches, mud pump, hydraulic system and control functions in one unit. This reduces the amount of separate equipment that must be transported and assembled on site.

Suitable for Large-Diameter Water Well Drilling

Truck mounted rigs are commonly used for larger boreholes and deeper water well projects where casing installation, drilling fluid circulation and lifting capacity are important. They can support drilling work in clay, sand, gravel, weathered rock and bedrock when matched with the appropriate drilling tools and circulation system.

Stable Working Platform

Hydraulic outriggers help stabilize the rig before drilling. Proper leveling is important for mast alignment, drilling accuracy, safe operation and efficient handling of drill rods and casing.

Practical for Contractors with Frequent Projects

For contractors handling irrigation wells, industrial wells, geothermal wells or municipal water projects in multiple locations, a truck mounted rig can improve fleet utilization and reduce non-productive transfer time.

Drilling Methods and Geological Adaptability

A truck mounted water well drilling rig can be configured for different drilling methods according to the formation.

Mud Rotary Drilling

Mud rotary drilling is commonly used in clay, sand, gravel and unconsolidated formations. Drilling fluid circulates through the hole to carry cuttings to the surface, stabilize the borehole wall and support cleaner casing installation.

This method is often suitable for:

• Loose soil formations

• Clay layers

• Sandy formations

• Gravel layers

• Mixed overburden formations

Air Drilling and DTH Drilling

For harder rock formations, air drilling or DTH drilling may be more suitable. A matched air compressor, DTH hammer and drill bit are required to achieve efficient penetration in rock.

This method is often considered for:

• Weathered rock

• Fractured rock

• Hard rock formations

• Bedrock sections below overburden layers

Combined Drilling Methods

Many water well projects involve multiple geological layers. A contractor may need mud drilling in loose overburden and air or DTH drilling after reaching rock. The drilling method, mud pump, air compressor, hammer and bit should therefore be selected according to the actual geological report or local drilling experience.

JK Drilling can help recommend a complete configuration based on your formation conditions and project requirements.

JKCS300 vs. JKCS600: Which Model Fits Your Project?

JK Drilling currently provides two truck mounted well drilling rig models for different project scales.

Maintenance and Spare Parts Planning

Water well drilling projects often operate in remote areas, where downtime can delay casing installation, well completion and project schedules. We recommend preparing essential spare parts together with the first machine order.

Typical initial spare parts may include:

• Engine filters

• Hydraulic filters

• Air filters

• Hydraulic hose fittings

• Seal kits

• Electrical relays and sensors

• Mud pump wear parts

• Winch-related maintenance parts

• Drill rod connectors

• DTH hammer service kits

• Drill bit consumables

• Lubrication components

JK Drilling can provide maintenance guidance, spare parts support and remote troubleshooting assistance. Visit Services & Support for more information.

Frequently Asked Questions

What is the main advantage of a truck mounted water well drilling rig?

Its main advantage is mobility. The drilling system is mounted on a truck chassis, allowing contractors to transfer between accessible job sites more efficiently than transporting a separate drilling rig by trailer.

Is a truck mounted rig suitable for deep water wells?

Yes, depending on the selected model and geological conditions. JKCS300 is designed for drilling depths up to 300 m, while JKCS600 is designed for drilling depths up to 600 m.

Can the rig drill in sand, clay and rock?

Yes. With the appropriate drilling method and tools, truck mounted water well rigs can be configured for clay, sand, gravel, weathered rock and bedrock conditions.

Should I use mud drilling or air drilling?

Mud drilling is commonly used for loose formations such as clay, sand and gravel. Air or DTH drilling is often used for harder rock. Many projects require a combination of methods depending on the geological layers.

Can JK Drilling supply an air compressor and drilling tools with the rig?

Yes. JK Drilling can supply a complete package including air compressors, drill rods, DTH hammers, drill bits and spare parts.

What should I consider when exporting a truck mounted drilling rig?

You should confirm destination road regulations, vehicle dimensions, weight limits, driving side, truck chassis requirements, shipping method and site access conditions before finalizing the configuration.

Can JK Drilling provide installation and operation support?

JK Drilling can provide technical consultation, equipment documentation, installation guidance, operation support, maintenance recommendations and spare parts supply for overseas projects.

Choose the Right Truck Mounted Drilling Solution

A suitable truck mounted water well drilling rig should be selected based on drilling depth, borehole diameter, geology, drilling method, chassis requirements and transport conditions.

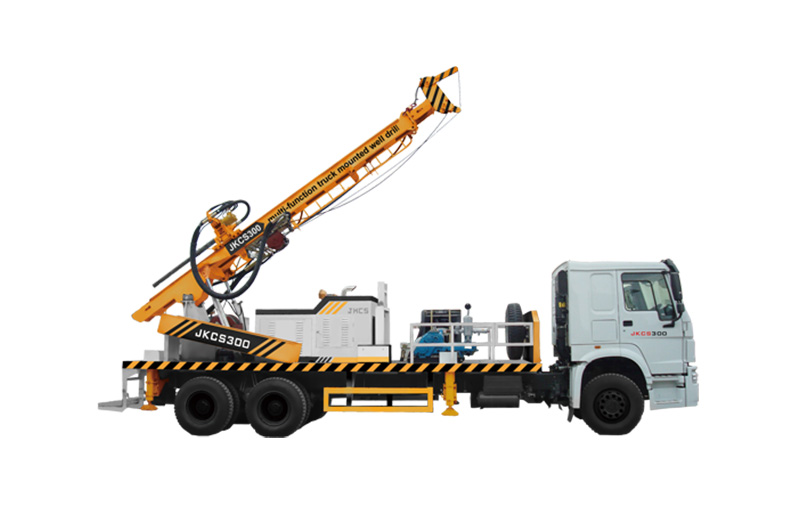

For medium-depth water wells and regular field transfers, review the JKCS300 Truck Mounted Drill Rig. For deeper wells, larger boreholes and geothermal drilling requirements, review the JKCS600 Truck Mounted Well Drilling Rig.

Visit our Project Cases page to see drilling equipment applications, or contact JK Drilling through ！Contact Us with your project details for a customized equipment recommendation.
