JK820-2 Integrated DTH Drilling Rig

Inquire Now Next Product

PRODUCT DESCRIPTION

<strong>JK830 All-in-One DTH Automatic Drill Rig - Efficient Hydraulic Drilling Rig</strong>

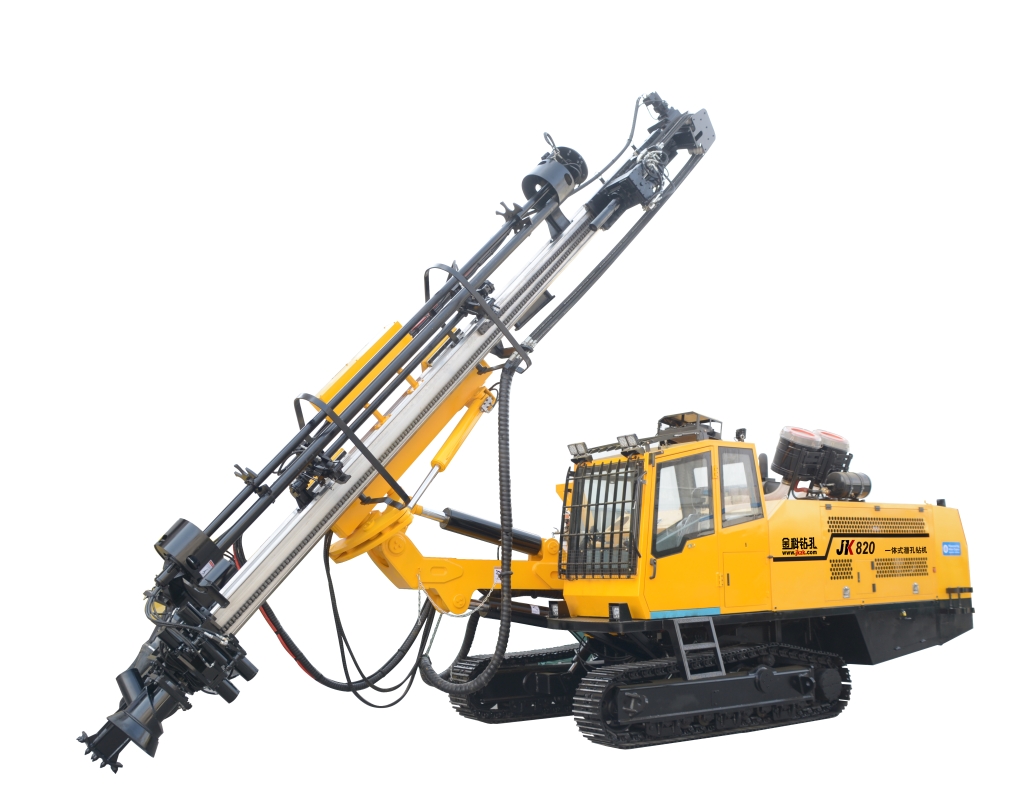

JK830 All-in-One DTH Automatic Drill Rig

Product Overview

The JK830 All-in-One DTH Automatic Drill Rig is a high-efficiency drilling machine designed for precise drilling operations in demanding underground environments. It integrates modern hydraulic and DTH (Down the Hole) technologies to ensure stable drilling performance in a wide range of geological conditions.

Key Features

High-Performance Hydraulic System: Optimized design minimizes energy loss, enhancing drilling efficiency.
Automated Operation: Equipped with advanced automation systems for easy operation, reducing labor costs.
Wide Application: Suitable for construction, mining, civil engineering, and other sectors.
Durability: Built with high-quality materials and precision manufacturing for longer service life and reduced maintenance intervals.

Technical Specifications

Item	Specification
Drilling Diameter	Φ90mm - Φ300mm
Drilling Depth	Up to 30m
Power	115KW
Dimensions	6000mm x 2000mm x 2400mm

Applications

The JK830 Hydraulic DTH Drill Rig is widely used in construction, mining, infrastructure development, and other industries. It provides efficient and precise drilling solutions in complex geological conditions and various drilling projects.

Main configurations

Operation system

The operation system is simple and ergonomically-friendly. The rig's operating parameters, instructions and warnings all can be clearly displayed on the dashboard, easy for the operator to monitor. The real-time display of hole collaring angle and compressor operat-ing parameters help the operator drill holes precisely and control the rig easily.

Cabin

The sealed air-conditioned cabin is made with FOPS which meets EU and US safety protection standards. The all-around large safety windows offer great visibility and help the operator control the rig precisely from all angles. The high ground clearance of over 400mm suits varieties of tough terrain and minimizes the possibility of collision with ground.

Rotation unit

The equipped double cycloid motors can output massive torque and reduce possibility of pipe-stuck situation. And the rotation rate can be continuously adjusted according to different rock forma-tions. The imported seals for the rotation unit is with extraordinary performance and long service life.

Air compressor

The high-output Atlas Copco air compressor features two stages of compression, powerful and reliable, it suits rock formations of various hardness and offers high penetration rate with ease.

Engine

The water-cooled EFI turbo engine offers more power, consumes less fuel and complies with the National I川I emission standard. The two-stage air filter system ensures intake of clean air and great-ly reduces the engine failure rate.

Feeding system

The aluminum alloy feed is made of special material and has the protection ability of stainless steel wear-resistant sleeve. The double cycloid motor slewing device has large rotating torque and is not easy to jam. It can realize big hole drilling operation on the basis of ensuring the ease and flexibility of the rig. At the same time, the rotation speed can be adjusted according to different rock formations. Imported rotary seals have good sealing performance and long service life.

Automatic pipe handling system

AIlI the functions, such as pipe storage, pipe loading and unloading, movement of the mechanical clamps, can be controlled very easily with one single joystick. Loading and unloading of the drill pipes are easily achieved by upper and lower clamping, greatly raising the working efficiency.

Dust collecting system

The efficient hydraulic dust collector is equipped with a sliding dust cover. It boasts high dust collecting efficiency and stable perfor- mance, extends the rig' S service life and ensures a clean working environment for the operators.

Repair and maintenance

Convenient maintenance, maintenance and inspection points are easily reached.

Reasonable position of engine,

Maintenance is very convenient because the doors on shed are easy to open and close.

Customer Feedback

"We have been using the JK830 for over a year now, and the stability and efficiency of the rig have greatly improved our drilling operations, increasing our productivity." – Mining company client

Get a Quote

Technical specifications

General	Weight	kg	21000
	Length	mm	9920
	Width	mm	2700
	Height	mm	3500
Drill pipe changer	Drilling diameter	mm	φ140-φ190
	Dilling depth	mm	35
	Pipe diameter	mm	φ89/φ102
	Pipe length	mm	5
	Pipe capacity	支/Piece	6+1
	Hammer specs	"	5-6-7
Air compressor	Working pressure	bar
Air compressor	Max. FAD	m³/min
Feed	Feed extension	mm	1400
	Feeding stroke	mm	5895
	Feed swing angle		Left36 right95
	Type		Water-cooled six-ylinder EFI diesel engine
	Rated power	kw/rpm	298/2100
	Fuel tank capacity	L	700
Rotary motor	Rotation rate	rpm	0-85
	Max. rotation torque	Nm	3600
	Feeding method		Hydraulic motor + Chain
	Feeding force	KN	30
	Lifting force	KN	30
Undercarriage	Track width	mm	≥350
	Ground clearance	mm	±10
	Track oscillation		2/3
	Walking speed	km/h	20
	Grade ability
Dust collector	Collecting method		Hydraulic dust collecting
