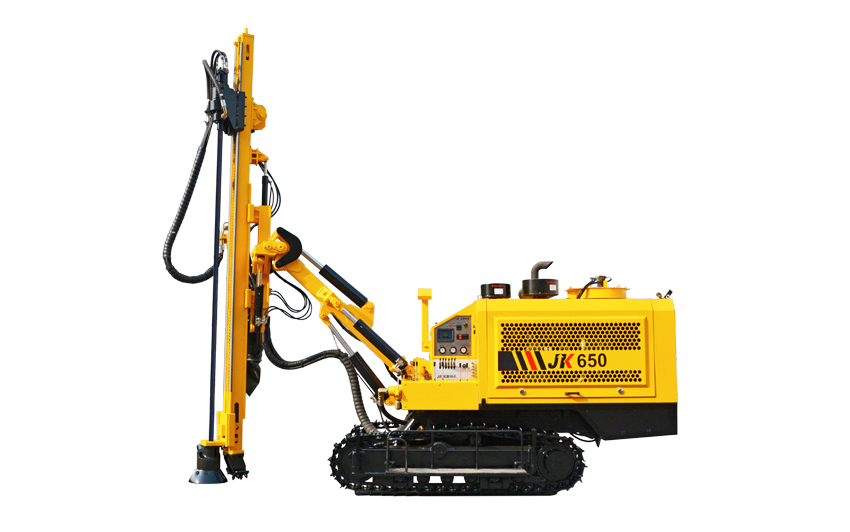

JK650 Integrated DTH Drilling Rig
JK650 is an All-In-One DTH drilling rig, which brings you more automation, higher working efficiency, better reliability and simpler operation. JK650 is the integration of drilling rig and air compressor-Atlas Copco, the design has many advantages like facilitating air compressor transport and management on mining site, retaining more air energy and requiring less manpower. The equipped high-performance hydraulic dust collecting system meets the latest environmental protection regulations and it's a reliable solution to realize the modern green mining.
PRODUCT DESCRIPTION
All In One DTH Automatic Drilling Rig Machine Introduction:
JK650 is an All-In-One DTH drilling rig, which brings you more automation, higher working efficiency, better reliability and simpler operation. JK650 is the integration of drilling rig and air compressor-Atlas Copco, the design has many advantages like facilitating air compressor transport and management on mining site, retaining more air energy and requiring less manpower. The equipped high-performance hydraulic dust collecting system meets the latest environmental protection regulations and it's a reliable solution to realize the modern green mining.
The high-output Atlas Copco air compressor delivers pressure of 17bar and FAD of 17m³/min. Powerful and reliable, it suits rock formations of various hardness and offers high penetration rate with ease.
All In One DTH Automatic Drilling Rig Machine Parameters:
General | Weight | kg | 10000 |
Length | mm | 7863 | |
Width | mm | 2400 | |
Height | mm | 3080 | |
Undercarriage | Track width | mm | 300 |
Ground clearance | mm | 370 | |
Track oscillation | ° | ±10° | |
Walking speed | km/h | 2 (low) / 3 (high) | |
Grade ability | ° | 27° | |
Engine | Model | QSC8.3-C260-30 | |
Type | Water-cooled six-cylinder EFI diesel engine | ||
Rated power | kw/rpm | 194/2100 | |
Fuel tank capacity | L | 400 | |
Air compressor | Model | Atlas Copco | |
Working pressure | bar | 17 (high) | |
Max. FAD | m3/min | 17 | |
Rotary motor | Rotation rate | rpm | 0-70 |
Max. rotation torque | Nm | 2904 | |
Feeding method | Motor-driven planetary gearbox + Chain | ||
Feeding force | kN | 12 | |
Lifting force | kN | 18 | |
Feeding stroke | mm | 4148 | |
Feed extension | mm | 1200 | |
Drilling depth & diameter | Drilling diameter | mm | Φ90-Φ150 |
Drilling depth | m | 50 | |
Pipe length | m | 3 | |
Pipe diameter | mm | 76 | |
Dust collector | Collecting method | Dry tpye hydraulic dust collecting (Optional wet type) |
