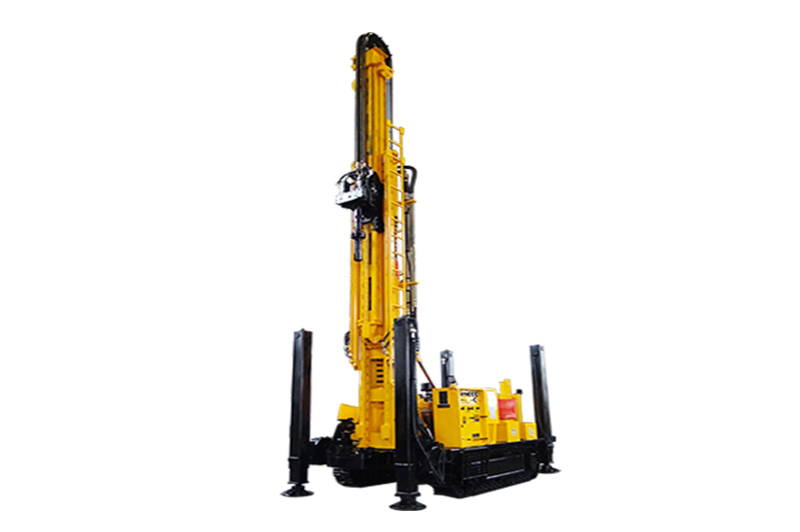

JKS380S Crawler Mounted Telescoping Mast Well Drilling Rig

Applicable to various working site.

Rated Drilling Depth

300m

Site Condition

It is mainly applicable to the drilling process of water wells, monitoring boreholes and geothermal boreholes.

Inquire Now None

PRODUCT DESCRIPTION

JKS380S Crawler Mounted Telescoping Mast Well Drilling Rig

Product Overview

The JKS380S Crawler Mounted Telescoping Mast Well Drilling Rig is a high-performance rig designed for efficient well drilling across various applications, including water well and geothermal drilling. The telescoping mast design ensures smooth and efficient drilling operations in confined spaces or challenging terrains. With its powerful hydraulic system and crawler-mounted structure, the JKS380S is ideal for long-term operations and offers maximum stability and mobility on various ground conditions.

Product Features

JKS380S is a new, efficient, multifunctional hydraulic crawler mounted telescoping mast well drilling rig, mainly applicable to the drilling process of water well, monitoring boreholes and geothermal boreholes. When drilling in the rock layer, the rig adopts DTH hammer for penetration and compressed air for cleaning, with the penetration speed being dozens of times quicker than conventional rotation rigs.

The rig is able to handle casing size up to 6 meters.

In loose rock, the rig employs a cutting bit or cone bit and uses mud to clean the dirt, its versatility suiting for all kinds of complex geological conditions

Hydraulic supporters used facilitate the rig erection on site without crane.

Technical Specifications

Rated Drilling Depth	380m
Borehole Diameter	105～350mm
Engine Power	92kW
Maximum Lifting Force	18t
Axial Pressure	±8t
Lifting Force of Small Winch	1.5t
Rotation Torque	8500N.m
Rotation Rate	0～40/80rpm
Feeding Stroke	6800mm
Hydraulic Support Leg Stroke	1650mm
Lifting Speed	0～18m/min
Centralizer Height	0.8m
Grade Ability	15°
Hydraulic Generator	24kW/380V (optional)
Dimension (L x W x H)	6200mm × 2080mm × 2650mm
Weight	10.5t

Applications

The JKS380S is suitable for various drilling applications, including:

Water well drilling
Geothermal drilling
Mineral exploration
Foundation drilling for construction projects
Oil and gas exploration in certain environments

Customer Testimonials

“We’ve been using the JKS380S for our geothermal drilling projects and have been impressed with its stability and efficiency. The telescoping mast makes it easy to work in tight spots and the crawler design offers unmatched mobility.” – Geothermal Drilling Company

Get a Quote

If you’re interested in the JKS380S Crawler Mounted Telescoping Mast Well Drilling Rig or want more details, contact us today for a custom quote or additional information on its features and pricing.
