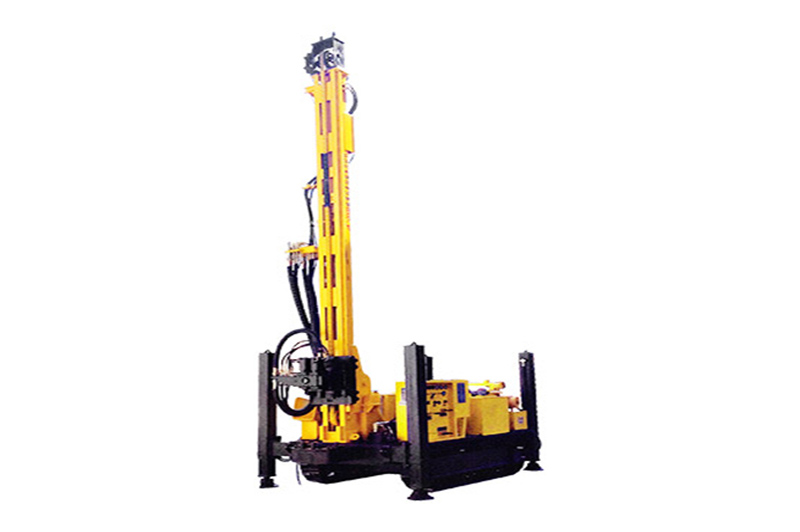

JKS300B Crawler Mounted Versatile Well Drilling Rig

Crawler Mounted Versatile Well Drilling Rig

Its smaller size can be adapted to various construction sites.

Rated Drilling Depth

300m

Application

It is applicable to the drilling process of water wells, monitor wells and geothermal wells, etc.

Inquire Now None

PRODUCT DESCRIPTION

JKS300B Crawler Mounted Versatile Well Drilling Rig

Product Overview

The JKS300B Crawler Mounted Versatile Well Drilling Rig is designed for high-efficiency drilling in a variety of applications, including water wells, geothermal drilling, and mineral exploration. Built for tough terrain, this rig offers excellent mobility and stability, ensuring reliable and precise drilling performance in any environment. Its robust design and advanced features make it an ideal choice for contractors and professionals in the drilling industry.

JKS300B Crawler Mounted Versatile Well Drilling Equipment Features

JKS300B Well Drilling Equipment is a new type of efficient and versatile hydraulic rig. It is mainly applicable to the drilling process of water wells, monitor wells, and geothermal wells.

When drilling in the rock layer, the rig adopts DTH hammer for penetration and compressed air for cleaning, with a penetration speed being dozens of times quicker than conventional rotation rigs.

In loose rock, the rig employs a cutting bit or cone bit and uses mud to clean the dirt, its versatility suiting for all kinds of complex geological conditions.

Winch can lift stuff upwards of 6m, facilitating installing pipes.

Hydraulic supporters facilitate the rig erection on site without crane.

Smaller size makes it adaptable to various kinds of construction sites.

Applications

The JKS300B is ideal for a variety of drilling operations:

Water well drilling
Geothermal drilling
Mineral exploration and mining
Construction and foundation drilling

Parameters

Rated Drilling Depth	300m
Borehole Diameter	105-350mm
Engine Power	92kW
Maximum Lifting Force	15T
Small Winch Lifting Force	1.5T
Rotation Torque	8500N.m
Rotation Rate	0-40/80rpm
Feeding Stroke	3600mm
Lifting Speed	0-18m/min
Grade Ability	15°
Hydraulic Generator (optional)	24kW/380V
Flow of Foam Pump (optional)	20L/min
Dimension (L x W x H)	6300mm x 2000mm x 2300mm
Working Size (W x H)	3100mm x 6900mm
Weight	8.5T

Customer Testimonials

“The JKS300B has been an incredible addition to our drilling fleet. Its performance, especially in challenging terrains, has exceeded our expectations. The fuel efficiency is a major plus for us.” – Water Well Drilling Company

Get a Quote

If you're interested in the JKS300B Crawler Mounted Versatile Well Drilling Rig or need more information on its specifications and pricing, please contact us today for a customized quote. Our team is ready to help you with your drilling needs.
