JK410 Crawler Mounted Pneumatic Tophammer Drill Rig

Borehole Diameter

64-89mm

Site Condition

It is specially designed for the hydropower project and quarry mining project. JK410 can drill boreholes of various angles, ranging from horizontal angle to vertical angle.

Inquire Now None

PRODUCT DESCRIPTION

<strong>JK410 Crawler Mounted Pneumatic Tophammer Drill Rig - High-Performance Drilling Rig</strong>

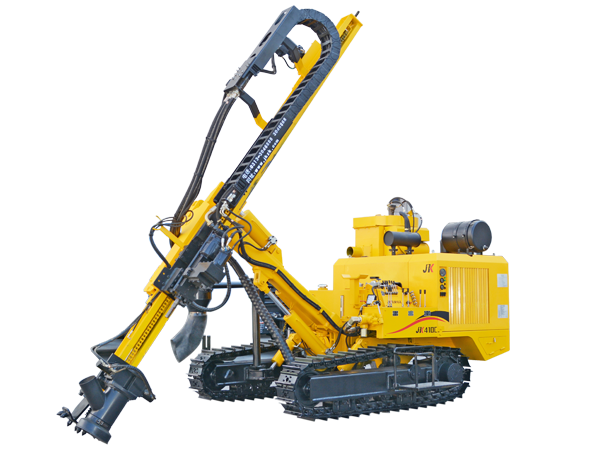

JK410 Crawler Mounted Pneumatic Tophammer Drill Rig

Product Overview

The JK410 Crawler Mounted Pneumatic Top hammer Drill Rig is engineered for high-efficiency drilling in a variety of applications, including mining, quarrying, and construction. Featuring a crawler-mounted design, it offers superior mobility and stability, making it ideal for tough terrain. Equipped with a pneumatic top hammer system, the JK410 delivers powerful and precise drilling performance for efficient hole creation and rock fragmentation.

JK410 is a new generation pneumatic top hammer drill rig, the latest updated products of the "Sharp Sword" series, specially designed for the hydropower project and quarry mining project. JK410 can drill boreholes of various angles, ranging from horizontal angle to vertical angle. It boasts its better performance, compact design, small footprint and humanized operation.

JK410 top hammer drill rig can be additionally equipped with dust collection system, and as long as water is accessed, wet type dust collection system is optional.

Key Features

Pneumatic Tophammer Technology: Provides reliable drilling with increased penetration rates, reducing drilling time and improving efficiency.
Crawler Mounted Design: Offers excellent mobility and stability for operation in rough or uneven terrain.
High Fuel Efficiency: Optimized engine performance that reduces fuel consumption while maintaining high output.
Durable and Reliable: Built with robust materials to withstand harsh working conditions and deliver long-term performance.
Ease of Operation: Designed for simple operation with intuitive controls that reduce operator training time.

Applications

The JK410 Crawler Mounted Pneumatic Tophammer Drill Rig is ideal for the following applications:

Mining operations and exploration
Quarrying for aggregates
Road and highway construction
Foundation drilling and civil engineering projects

Specifications

Borehole Diameter	φ64-φ89mm
Drilling Depth	15m
Rock Drill Rod	T38×3050
Travel Speed	2km/h
Rotation Rate	0-200rpm
Rotation Torque	280Nm
Feed Extension	1200mm
Feeding Stroke	4100mm
Feeding Rate	0-0.6m/s
Lifting Rate	0-1.2m/s
Grade Ability	20°
Lifting Force	18kN
Feeding Force	12kN
Rated Air Pressure of Rock Drill	0.5-0.6MPa
Air Consumption of Rock Drill	215L/S
Impact of Rock Drill	≥220J
Water Pressure of Rock Drill	0.4MPa
Dimension (L × W × H)	7000mm × 2200mm × 2100mm (Transportation)
Weight	6T
Dry Type Dust Collector	Optional

Customer Testimonials

“The JK410 has significantly improved our drilling efficiency in mining. The machine's reliability and ease of operation make it an essential part of our drilling fleet.” – Mining Industry Client

Get a Quote

If you’re interested in the JK410 Crawler Mounted Pneumatic Tophammer Drill Rig or want to know more about its specifications and pricing, contact us today for a detailed quote. We’re ready to help you with your drilling needs.
