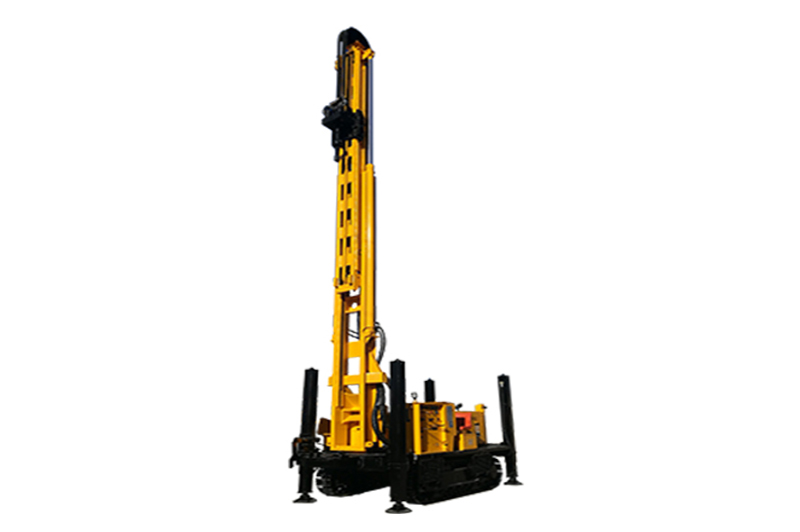

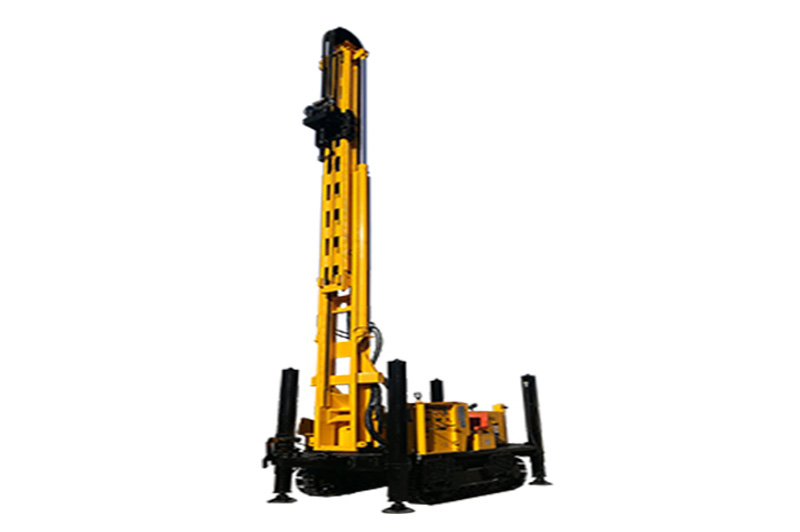

JKS600SH Crawler Mounted Telescoping Mast Well Drilling Rig

The rig is able to place casing of 6 meters.

Rated Drilling Depth

600m

Site Condition

It is mainly applicable to the drilling process of water wells, monitoring boreholes, geothermal boreholes and defense project.

Inquire Now None

PRODUCT DESCRIPTION

Product Features

JKS600SHis a new, efficienct, multifunctional hydraulic crawler mounted telescoping mast well drilling rig , mainly applicable to the drilling process of water well, monitoring boreholes, geothermal boreholes, constructions like dam, reinforced base and defense project.

The rig is able to handle casing pipe size up to 6 meters

When drilling in the rock layer, the rig adopts DTH hammer for penetration and compressed air for cleaning, with high penetration speed.

In loose rock, the rig employs hammer and casing as well as mud drilling.

Hydraulic supporters facilitate the rig erection on site without crane.

Rated Drilling Depth	600m
Borehole Diameter	140~350mm
Engine Power	132kW
Max Lifting Force	32t
Axial Pressure	±10t
Lifting Force of Small Winch	1.5t
Rotation Torque	11000N.m
Rotation Rate	0～40/80rpm
Feeding Stroke	7000mm
Hydraulic Supporting Leg Stroke	1650mm
Lifting Rate	0~15m/min
Grade Ability	15°
Transport Dimension (L x W x H)	6800mm x 2250mm x 2750mm
Working Dimension (L x W x H)	6800mm x 3250mm x 12900mm
Weight	13.7t
Hydraulic Generator (optional)	24kW/380V
Centrifugal Mud Pump (optional)	1500L/min
Plunger Mud Pump (optional)	1000L/min
