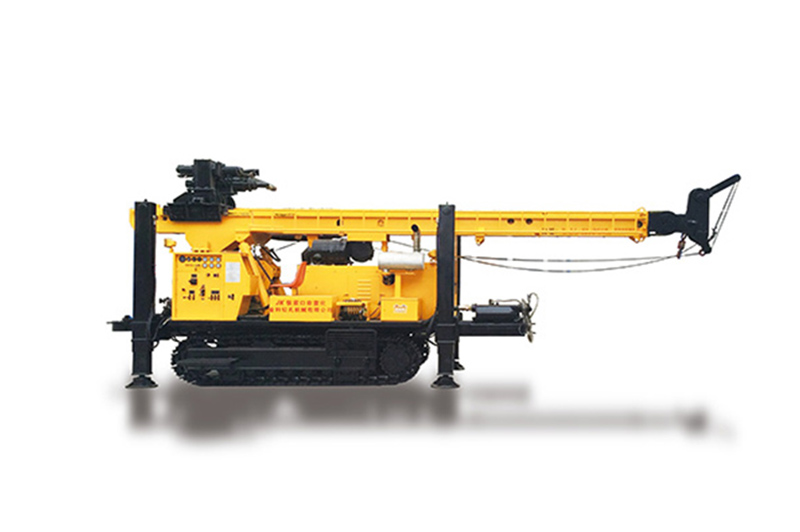

JKS1000 Crawler Mounted Versatile Well Drilling Rig

A new, efficient and versatile hydraulic well drilling rig

Rated Drilling Depth

1000m

Site Condition

It is mainly applicable to the drilling process of wells, monitor boreholes, dewatering boreholes, relief boreholes and gas layers and other exploitation projects.


Inquire Now None

PRODUCT DESCRIPTION

Product Features

JKS1000 crawler mounted versatile drill rig is a new, efficient and multifunctional well drilling rig, mainly applicable to the drilling process of wells, monitor boreholes, dewatering boreholes, relief boreholes and gas layers and other exploitation projects. When drilling in the rock layer, the rig adopts DTH percussive hammer for penetration and compressed air for cleaning, the penetration speed being dozens of times quicker than conventional rotation rigs. In loose rock, the rig employs a cutting bit or cone bit and uses mud to clean the dirt, its versatility suiting for all kinds of complex geological conditions.


Rated Drilling Depth1000m
Borehole Diameter140~450mm
EngineCummins 6BTA5.9-C180 (132kW)
Max. Lifting Force37T
Lifting Force of Small Winch1.5T
Lifting Force of Main Winch5T
Rotation Torque24500N.m
Rotation Rate0-40/80rpm
Feeding Stroke5340mm
Lifting Rate0-25m/min
Height of Centralizer0.9m
Grade Ability15°
Hydraulic Generator (optional)24kW/380V
Flow of Foam Pump (optional)20L/min
Flow of Centrifugal Froth Pump (optional) /
Flow of Plunger Mud Pump (optional) /
Dimension (L x W x H)9160mm x 2250mm x 3340mm
Working Size (W x H)3250mm x 9900mm
Weight16.5T
